EXTERIOR WATERPROOFING

Reliable Exterior Drain Tile Technicians in Woodbury, MN

At Rite-Way Waterproofing we provide exterior waterproofing services with the same professionalism as that of interior work. When there are moisture issues inside your basement, home or business the source is most often due to poor waterproofing on the outside. Fortunately we are experienced in a range of exterior waterproofing techniques. Including the most visual, rain gutter control, and the not so visual exterior foundation drain tiling or French drains.

Gutter Downspout — Lino Lakes, MN — Rite-Way Waterproofing

Our team of exterior drain tile technicians in Woodbury, MN, specializes in providing expert solutions for water management and protecting your property from water damage. With extensive experience and a commitment to quality workmanship, we ensure that your home or business remains safe and dry.

Our exterior drain tile technicians are skilled in designing and installing effective drainage systems that channel water away from your property's foundation, preventing damage from hydrostatic pressure and potential basement flooding. We utilize high-quality materials and industry-leading techniques to create long-lasting, efficient drainage solutions tailored to your property's unique needs.

Our team offers maintenance and repair services for existing exterior drain tile systems. By conducting regular inspections and addressing any issues promptly, we help you maintain the effectiveness of your drainage system and safeguard your property from water-related problems.

If you are ready to experience the customer service experience that the team at Rite-Way Waterproofing can offer your commercial or residential property, be sure to visit our helpful contact page and reach out to us today.

SHEET MEMBRANES

MEL-ROL®
Rolled, Self-Adhering Waterproofing Membrane

DESCRIPTION
MEL-ROL waterproofing system is a flexible, versatile, dependable, bituminous, roll-type waterproofing membrane. It is composed of a nominally 56 mil thick layer of polymeric waterproofing membrane on a heavy-duty, four-mil thick, cross-laminated polyethylene carrier film. The two components are laminated together under strict quality-controlled production procedures.

A handy overlap guideline is printed 2 ½” (63.5 mm) in from the material edge on each side to assure proper overlap coverage and to assist in maintaining a straight application. Unique exposed polymeric membrane strips are provided on both sides for positive membrane-to-membrane adhesion in the overlap area. The membrane strips are protected by a pull-off release strip. All components of the MEL-ROL waterproofing system work together to provide a cost-effective, positive waterproofing system that’s quick and easy to apply.

USES
MEL-ROL waterproofing system provides a cost-effective answer to properly waterproof foundations, vertical walls, and below-grade floors in residential and commercial construction. It is equally effective for use as between-the-slab waterproofing on plaza decks, parking decks, and structural slabs. Use it as a waterproofing membrane to isolate mechanical and electronic rooms, laboratories, kitchens, and bathrooms. MEL-ROL offers positive protection when “wrapped around” major rapid transit, vehicular, utility, and pedestrian tunnel projects. MEL-ROL can also be used on insulated concrete forms (ICF).

Installation of PROTECTION COURSE from W. R. MEADOWS is recommended before backfilling. MEL-ROL can also be used with drainage boards when specified.

FEATURES/BENEFITS

Provides cost-effective, flexible, versatile, dependable, positive waterproofing protection against damaging moisture migration and the infiltration of free water.
Offers a quick and easy-to-apply system for maximum productivity.
Special membrane-to-membrane adhesion provides additional overlap security.
Meets or exceeds the test requirements of all currently applicable specifications.
Components work together for positive waterproofing protection.
Handles with ease on the jobsite.
Available in a low temperature version for use when air and surface temperatures are between 20° F (-7° C) and 60° F (16° C). An extra-low temp version is also available, ideal for application in extra-low temperatures down to 0º F (-18º C).

HOT APPLIED MEMBRANES

TREMproof® 6100

Multi-Layered, Fabric-Reinforced, Hot-Applied, Rubberized Asphalt Waterproofing Membrane

TREMproof 6100® is a one-part, 100% solids, hot-applied, rubberized asphalt waterproofing membrane. TREMproof 6100 can be formulated with up to 25% recycled content.

Basic Uses

TREMproof 6100 is ideally suited for new and remedial waterproofing applications.
It is applied to horizontal concrete surfaces and is formulated exclusively for application to the top level of structures, including applications such as plaza decks, roof decks and unexposed top-level parking areas.
EQUIPMENT: Heating of TREMproof 6100 is accomplished utilizing a double-jacketed, oil-bath melter with mechanical agitation, specifically designed for applying non-direct fired hot rubberized asphalt waterproofing membranes. Specific temperatures can be found in the data sheet.

LIQUID APPLIED MEMBRANES

MEL-ROL® LM
Single-Component, Water-Based, Polymer-Modified, Cold-Applied, Liquid Waterproofing Membrane

DESCRIPTION
MEL-ROL LM is a single-component, polymer-modified, cold-applied, water-based, liquid waterproofing membrane ideal for below-grade vertical seamless waterproofing applications. We have taken the same high quality rubber polymers found in W. R. MEADOWS’ successful MEL-ROL “peel and stick” membrane and converted them into a heavy-bodied, high solids, quick drying liquid membrane.

With MEL-ROL LM, installation time is reduced, utilizing either a spray or roller application. A variety of different protection courses, insulation boards, or drainage boards can be embedded into the membrane to create a superior waterproofing system. With the application of PERMINATOR® vapor barrier over the membrane, a composite system can be created that has the combined advantages of both “peel and stick” and liquid-applied waterproofing membranes.

USES
MEL-ROL LM can be used on new and remedial waterproofing applications on concrete or masonry block substrates. Since the formula is water-based, MEL-ROL LM can also be used on both ICFs and “green concrete” applications.

FEATURES/BENEFITS

Waterproof – very low vapor permeability (perm rating).
Superior elongation – bridges minor cracks; will not become brittle with age.
Fully bonded – water will not run beneath the membrane.
High solids, single-component, fast drying formulation – easy to apply; low cost application equipment; eliminates two-component mixing problems.
Cold-applied/water-based – will not adversely affect insulated forms (ICFs) or various protection board options. Allows for application to damp or “green concrete.”
VOC content is 0.0 g/L. Produces no harmful odors.
Easy application – no heating necessary. Eliminates fire hazards associated with heating kettles. Apply with roller or airless sprayer.

DRAINAGE

Drainage components, when incorporated, enhance the performance of the overall waterproofing system and reduce the amount of hydrostatic pressure and weight of watersaturated soil. Prefabricated drainage is engineered to create air space when applied over a membrane. Tremco’s TREMDrain® series of prefabricated drainage boards consists of a dimpled core which provides excellent water flow when under compaction. TREMDrain can be used for vertical and horizontal applications. TREMDrain products are offered with a variety of combinations of filter fabrics, drainage cores, an optional protective polymeric film and a TotalDrain System to replace perforated pipe/aggregate collection systems. Tremco’s TREMDrain series of drainage mats are compatible with TREMproof and Paraseal membranes.

BURIED GUTTER LINES & SUMP PUMP EXIT LINES

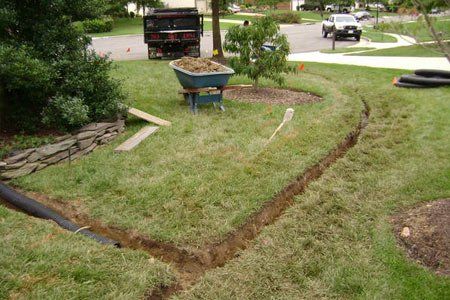

WHAT IS A FRENCH DRAIN?

It sounds elegant but in reality, it’s nothing more sophisticated than a gravel-lined ditch with an embedded pipe that carries water away from the home.

Whereas gutters collect precipitation as it runs off the roof, French drains manage water at ground level. Let’s say that after a rainstorm, water tends to pool in a particular low spot on your property. Rerouting the flow of water with a French drain would alleviate that problem.

A French drain also provides a solution for basements that admit water through the foundation. In these “wet” basements, water presses against the foundation and gradually leaks through. With a French drain, however, water near the foundation can be rerouted and deposited elsewhere.

If water continues to invade your basement despite seemingly adequate outdoor drainage, then you might need to install a French drain indoors. Installation involves cutting a trench in the basement slab along the perimeter of the foundation, laying pipe in the trench, and putting in a sump pump to move water from the interior to the exterior.
